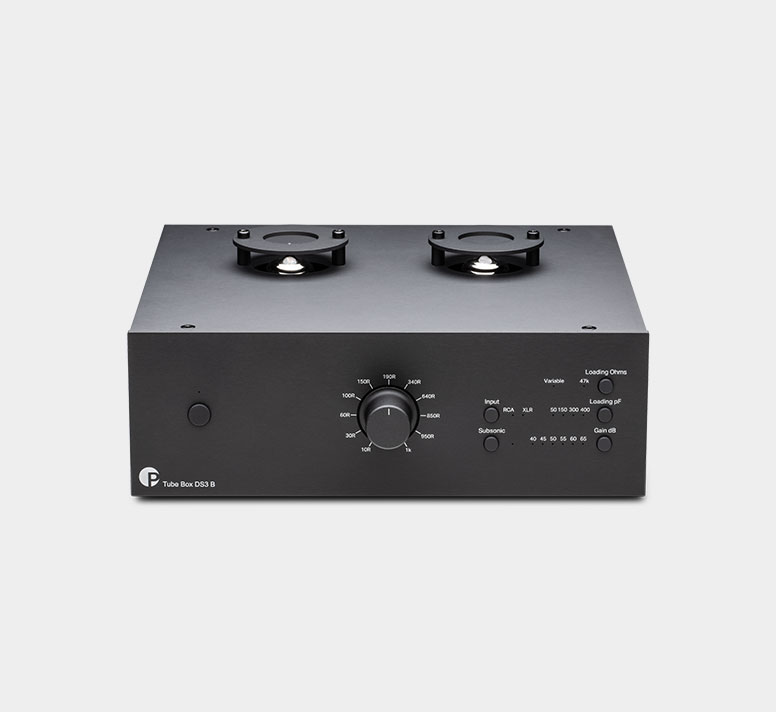

PRO-JECT TUBE BOX DS3 B UNI – BLACK
AED 5,250.00
- Tube assembly: 2x E88CC / 6922
- Input impedance: stepless 10-1000 Ohms, fix 47 kOhms
- Capacitance: 50 / 150 / 300 / 400 pF
- Gain (+6dB using XLR Out): 40 / 45 / 50 / 55 / 60 / 65 dB
- Output voltage typically: 500 mV/1kHz at 5mV/1kHz (at 40dB)
- Signal-to-noise ratio: >87dBV – ‚A‘ weighted
- THD: < 0,03%
- RIAA curve accuracy: +/- 0,5dB / 20Hz – 20kHz
- Subsonic filter: at 20Hz with 18dB/octave
- Input: 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
- Output: 1x pair RCA, 1x pair XLR
- Power supply: 18V/1000mA DC
- Power consumption: max 750mA DC / < 0,5 watt standby
- Dimensions W x H x D: 206 x 70 x 194 mm
- Weight: 1560g (without power supply)
Description
Description
High-end tube sound The Tube Boxes have been an integral part of our product portfolio for many years. Now, the new Tube Box DS3 B adds balanced in- and outputs to the beloved tube amplification. This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. Connect your turntable either with the 5-pin mini XLR cable or standard XLR cables & profit from the balanced signal transmission. Symmetrical, also called balanced, transmissions consist of a hot and a cold (also called + and -) signal. Both signal chains effectively carry the same musical information. The Tube Box DS3 B can extract the final musical information out of the +/- signals and remove all noise that was potentially added along the transmission.
Additional information
- NEW balanced XLR in- & outputs
- NEW more precise cartridge loading options
- Precise RIAA equalisation
- Ultra low noise circuitry
- MM & MC capable
- Balanced & single ended in- & outputs
- Dual mono design
- Continously variable input impedance loading
- Superior low noise / low distortion
- Subsonic filter
- Aluminium casing protects against interference
- Available in silver or black
- Magnetic wooden side panels avaialable separately
- Made in Europe
