Availability: In Stock

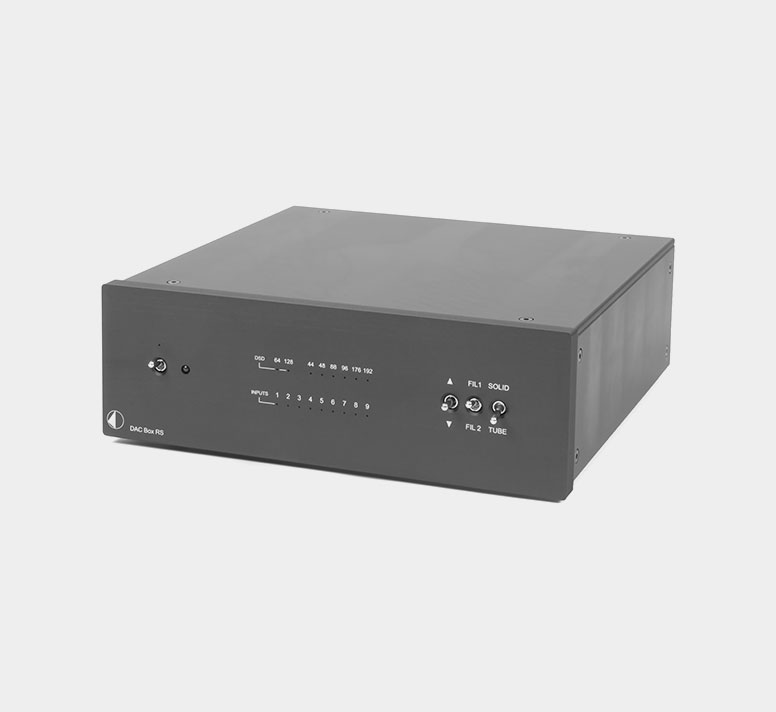

PRO-JECT DAC BOX RS (UK PLUG) – BLACK
Dac Box
Brands: Pro-Ject
SKU: QP181580
AED 5,000.00
- D/A-converter: Double Texas Instruments PCM-1792
- 8 x Oversampling design
- Sampling rates: 32/44,1/48/88,2/96/176,2/192 kHz, (except optical up to 96kHz)
- Selectable filter settings: „steep“ & „optimum phase“
- 9 digital inputs: 2x coax (S/PDIF), 4x optical (Toslink®),
- USB B, 1x AES/EBU, 1x I²S
- Precision clock output: BNC (use with CD Box RS)
- Frequency response: 20Hz – 50kHz (+0/-1dB)
- Output stages: 6922 tube and solid state (switchable)
- Analogue out: RCA/Cinch & XLR
- Output voltage: max 4/2 Veff (XLR/RCA)
- THD: 0,005% solid state out
- 0,25% tube out
- Signal to noise ratio: 100dB
- Power consumption: <1 watt standby, 800/300mA max (tube/solid)
- Outboard: Power supply 20V/3A DC (included)
- Dimensions W x H x D: 206 x 72 x 200 (210mm with sockets)
- Weight: 1890g without power supply
Description
Description
DAC Box RS – ultimate state-of-the-art audio converter!
The advanced DAC Box RS is a reference-class D/A converter for all kinds of digital stereo sound sources. It superbly acts as a superior USB audio interface for demanding HD computer audio, also features an I²S interface plus Master Clock output for use with CD Box RS and suits other digital sources with AES/EBU, optical and coaxial output. Engaged audiophiles will love full DSD capability (up to DSD128) over PCM. All inputs fully support 24/192kHz HD music data (optical inputs 96/24) in fully asynchronous mode. Additionally DAC Box RS incorporates a pair of the best audio grade DAC chips, PCM 1792, which only can be found in expensive high end designs.
Additional information
- Double top grade PCM-1792 D/A chip from Texas Instruments
- 9 Inputs: I²S, USB, AES-EBU, optical (Toslink), coax (S/PDIF)
- 24bit/192kHz asynchronous USB (XMOS technology)
- DSD (up to DSD128) capability (DSD over PCM)
- I²S interface for CD Box RS (sonic2data transfer technology) with additional clock synchronisation port (BNC)
- 2 selectable digital filter settings
- Fully balanced analogue audio circuitry
- Tube output stage & solid-state output stage (switchable)
- Ultra linear & ultra low noise circuitry
- IR remote control included
- XLR & RCA line level output sockets
- Full metal casing in silver or black
