Availability: In Stock

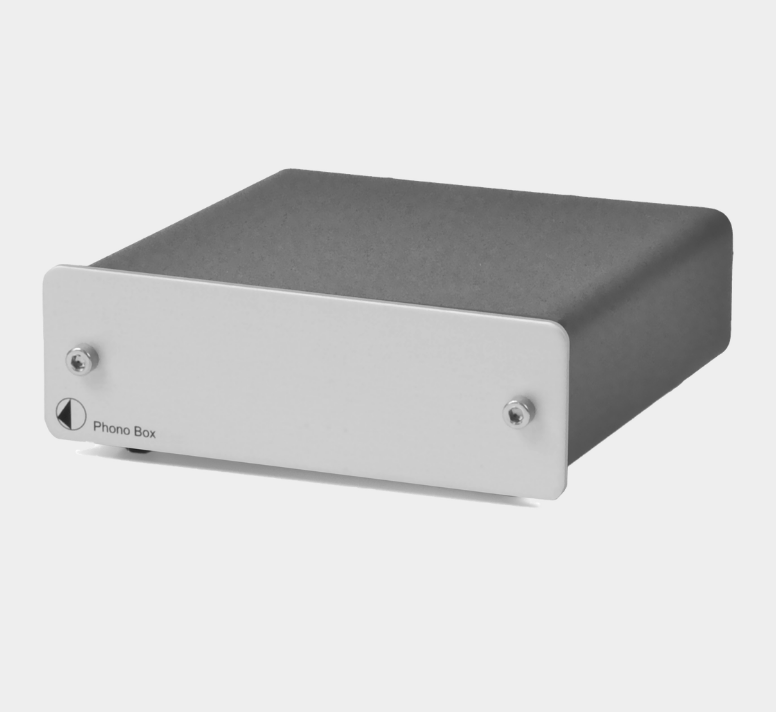

PRO-JECT PHONO BOX DS2 – Silver (Copy)
PHONO BOX DS2
Brands: Pro-Ject
SKU: PJ825339-2
AED 680.00
- Preamplifier for MM or MC with switch on rear panel
- Best buy classic „green“ DC power supply (<1watt standby power)
- Precise RIAA equalisation
- Low-noise ICs
- Output stage with ultra-low impedance
- Gold-plated RCA sockets
- Small size for installation near record player
- Available in black and silver
1 in stock
Description
Description
Phono Box: Best buy classic for pure
vinyl listening pleasure!
Today, many amplifiers do not have a specific phono
cartridge input. Phono Box is an ideal phono preamplifier for
these hi-fi systems and accepts both MM and MC cartridges.
The analogue output of Phono Box can easily be connected
to a line-input (AUX, …) of your amplifier.
Additional information
- Input impedance, MM: 47kohms/120pF
- Input impedance, MC: 100ohms/120pF
- Gain, MM: 40dB
- Output voltage typically: 300mV/1kHz at 3mV/1kHz (MM input)
- Gain, MC: 60dB
- Output voltage typically: 300mV/1kHz at 0,3mV/1kHz (MC input)
- Max. output: 9,5V (1kHz)
- Noise floor, MM: 94dBA / 75dBA
- Noise floor, MC: 94dBA / 75dBA
- THD, MM: 0,01%
- THD, MC: 0,05%
- RIAA-equalisation curve accuracy: 20Hz – 20kHz / max. 0,5dB
- Outboard power supply: 18V/200mA DC, suitable for your country‘s mains supply
- Standby power consumption: < 1 watt
- Dimensions W x H x D: 103 x 36 x 104 (115 mm with sockets)
- Weight: 570g
